Add headless browser on self-hosting

We use a chrome headless browser to generate images from your charts and dashboards so we can send them via email or Slack.

🛠 This page is for engineering teams self-hosting their own Lightdash instance. If you want to set up scheduled deliveries, go to the Scheduled deliveries guide.

Images can be requested on Slack unfurl or using our Scheduler

If you are running Lightdash on self-hosting, you will also have to run this headless browser on your infrastructure.

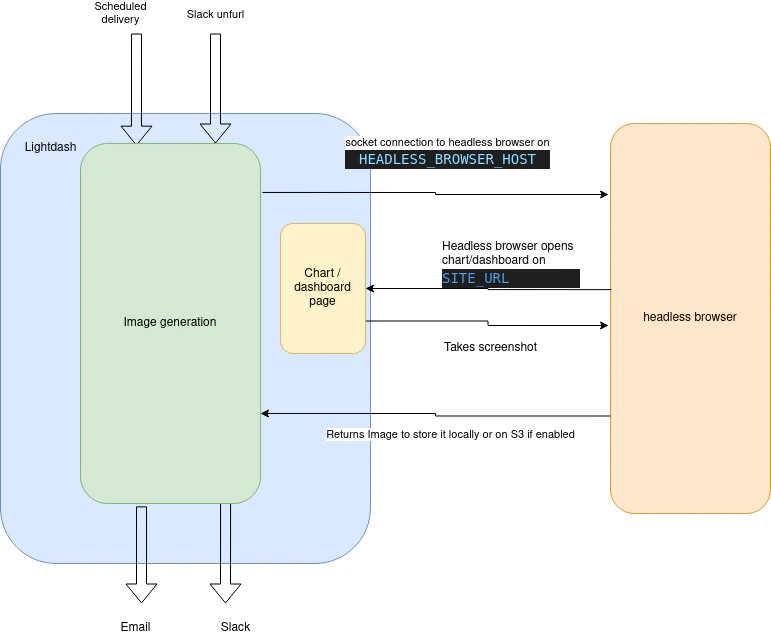

How it works

When Lightdash needs to generate an image, it will open a new socket connection to the headless browser on ws://HEADLESS_BROWSER_HOST:HEADLESS_BROWSER_PORT

Then using playwright we will browse the chart/dashboard on lightdash on SITE_URL

We load the chart/dashboard on the browser and then a screenshot when it finishes loading

Then we store that image in S3 (if enabled) or locally and then return the image URL.

If the image was requested by Slack unfurl, we will unfurl the image using the Slack API. If the image was requested by Scheduler, we will send the image to the destination(s) (email or Slack)

Configure headless browser on lightdash

Lightdash uses Browserless for headless browser functionality. We recommend using the ghcr.io/browserless/chromium image with version v2.24.3, which is the version used in Lightdash Cloud deployments.

In order to make this work, there are a few key ENV variables that need to be configured correctly.

• HEADLESS_BROWSER_HOST : If you’re running docker, this could be headless-browser, or localhost if you’re running it locally (or with network:host)
• HEADLESS_BROWSER_PORT : Optional port for headless browser, defaults to 3001
• SITE_URL : The URL for your Lightdash instance.

This SITE_URL variable (eg: https://eu1.lightdash.cloud) needs to be accessible from this headless browser service, either by a local connection, or via Internet. Otherwise it will not be able to open a page and generate the image.

This means that if you are using docker locally, make sure the headless browser pod can reach the lightdash pod. Or follow the docker documentation to enable network:host

Configure timeouts for large dashboards

When exporting large dashboards via scheduled deliveries, the default timeout values may not be sufficient. If you’re seeing consistent errors when exporting dashboards with many charts or complex visualizations, you likely need to increase the timeout settings.

There are two timeout values to consider:

Headless browser timeout

The Browserless container has its own TIMEOUT environment variable that controls how long it allows a single browser session to run. If your dashboards take a long time to fully render, the browser session may be terminated before Lightdash can capture the screenshot.

Set the TIMEOUT environment variable on the headless browser container (the ghcr.io/browserless/chromium image) to a higher value in milliseconds. For example, to allow up to 5 minutes:

headless-browser:
  image: ghcr.io/browserless/chromium:v2.24.3
  environment:
    - TIMEOUT=300000

Lightdash scheduler timeouts

You should also ensure that the Lightdash scheduler timeout values are high enough to accommodate the longer render times. Set these environment variables on the Lightdash application:

Variable	Description	Default
SCHEDULER_JOB_TIMEOUT	Maximum time in milliseconds before a scheduled delivery job is timed out.	600000 (10 min)
SCHEDULER_SCREENSHOT_TIMEOUT	Maximum time in milliseconds for taking a screenshot of a chart or dashboard.	—

If you’re exporting large dashboards on a schedule, start by increasing the headless browser TIMEOUT first. If exports still fail, also increase SCHEDULER_JOB_TIMEOUT and SCHEDULER_SCREENSHOT_TIMEOUT on the Lightdash side.
